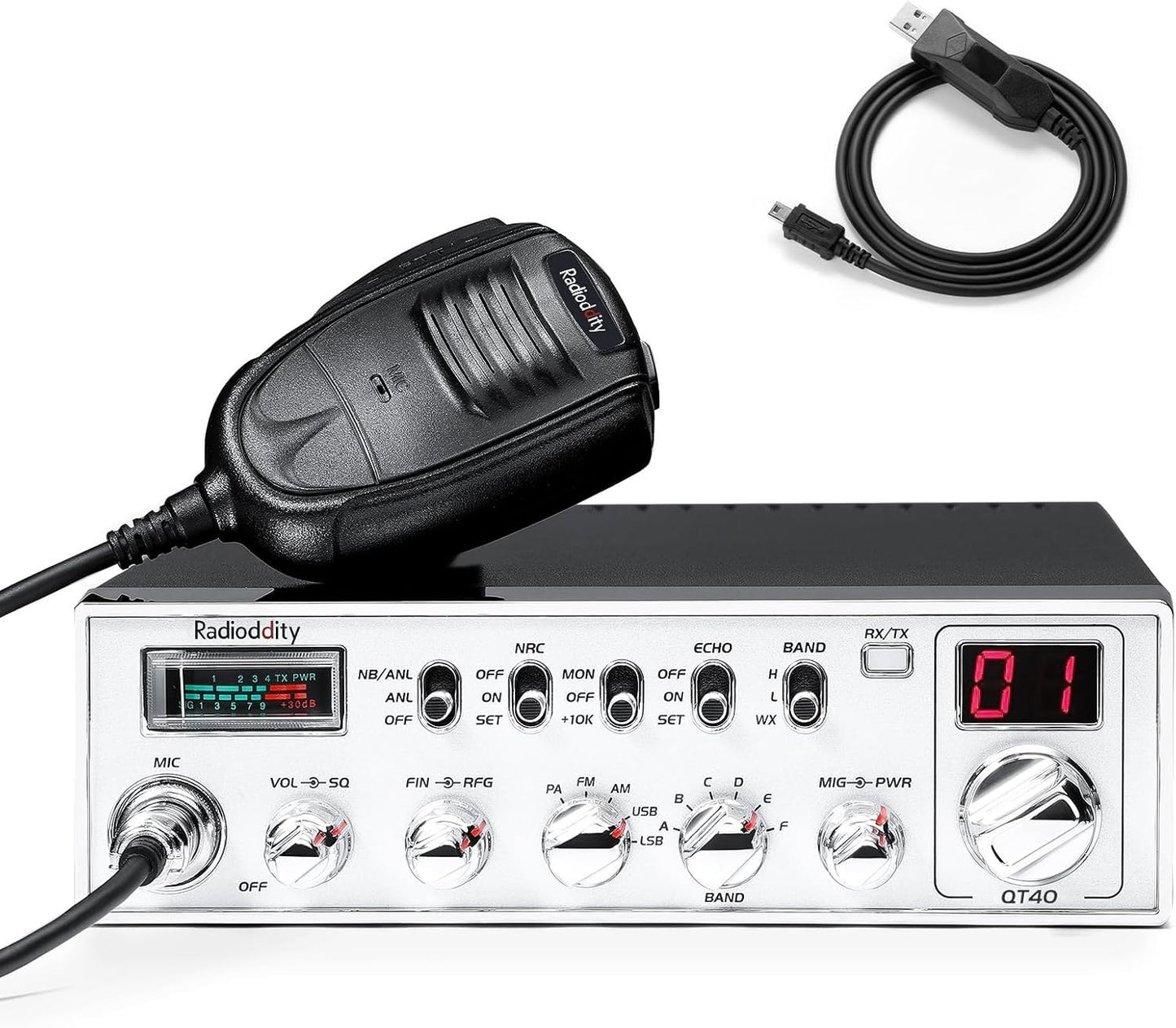

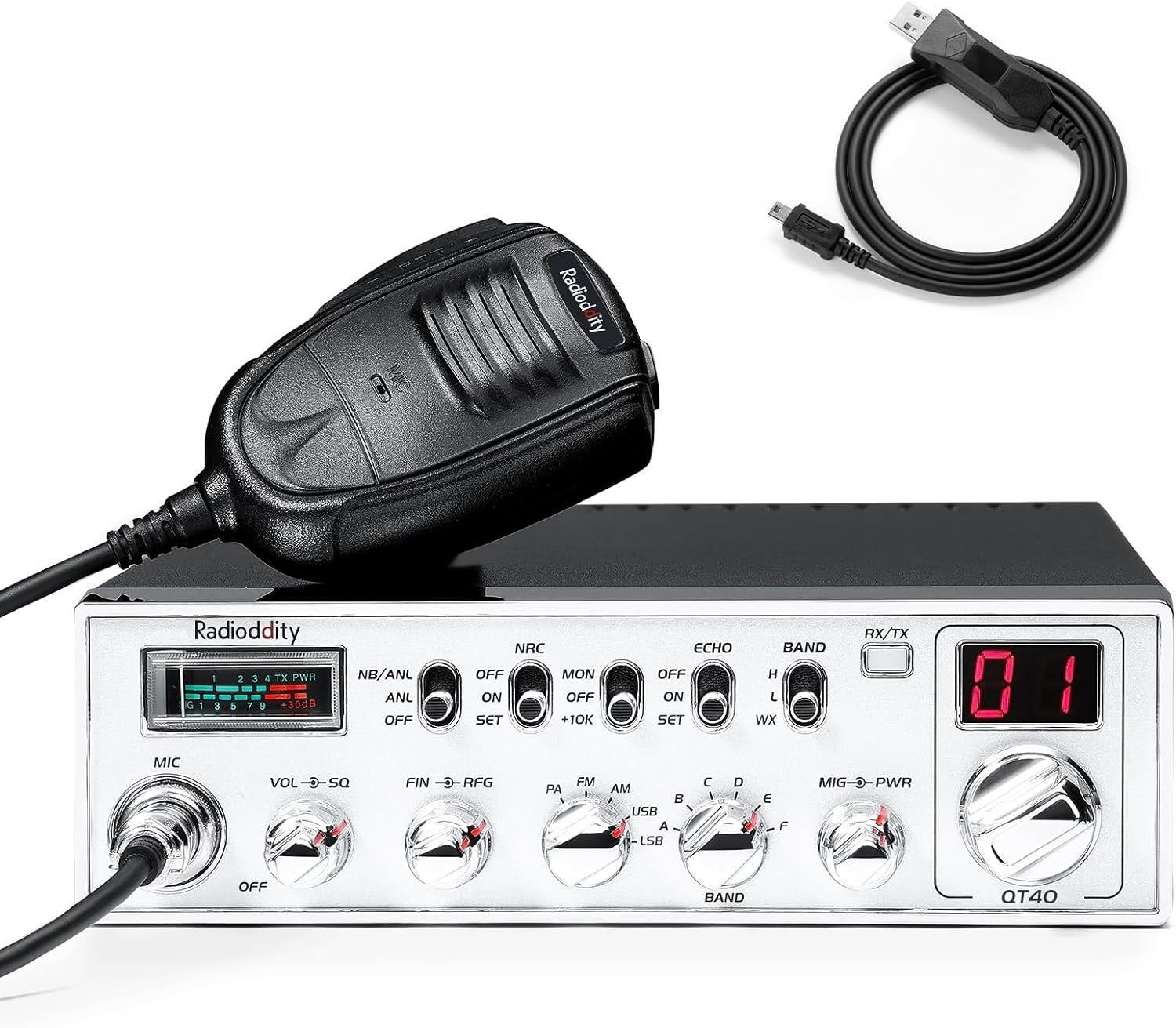

Radioddity QT40 10 Meter SSB Ham Radio, Digital Noise Reduction 40W High Power

Name: Radioddity QT40 10 Meter SSB Ham Radio, Digital Noise Reduction 40W High Power
Brand: Radioddity QT40 10 Meter SSB Ham Radio
Price: 138.00 USD
Availability: OutOfStock

$138.00 USD

~~$0.00 USD~~ $138.00 USD

Sale Sold out

Radioddity QT40 10 Meter SSB Ham Radio, Digital Noise Reduction 40W High Power Amateur Radio with NOAA Alert, AM/FM/PA Mobile Transceiver with CTCSS/DCS, USB Programming Cable, Perfect for Truck

Product Description

What's in the box?

QT40 Radio x 1
Microphone x 1
USB Programming Cable x 1

Accessories

Mounting Bracket x 1
Microphone Hanger x 1
Adhesive Case Protection x 2
DC Power Cable x 1
Screw for Bracket x 2
Pad for Bracket x 2
Adjusting Screw x 2
Spare Fuses(10A, 250V) x 1
Self-tapping Screw x 2
Pad x 2

qt40

Thanks to the VOX function, you can keep your hands free while communicating. The QT40 automatically detects your voice and starts transmitting, allowing you to focus on driving or other tasks while staying in contact.

qt40

Say goodbye to static-filled conversations. The QT40 features digital noise reduction technology that filters out unwanted background noise, providing you with crisp and clear audio.

qt40

Whether you're tuning into your favorite FM/AM radio station, monitoring the latest weather updates, or communicating in SSB (LSB/USB)/PA modes, this radio has got you covered.

Functions & Features

SWR Readout and High SWR Protection
Voltage Protection
Programmable Roger Beep
Echo Function
NPC function
SCAN function
FM Repeater Offset Function(+/- 100kHz)
+10KHz Function

Functions & Features

PC programmable
CTCSS/DCS Codes, with separate settings for TX and RX
TX and RX Noise Reduction(NRC)
Scrolling Frequency Display Function
SQ, ASQ Function
RF Gain Adjustment & PWR Adjustment
Microphone Gain Adjustment
PWR/RX RSSI S-Meter
NB/ANL Function
TOT Function

HI-CUT Function
Busy Channel Lock
TX Audio Monitor

General

Frequency Range	RX/TX: 28.000-29.695MHz (Programmable); RX: VHF: 140-170MHz & Weather band.
Frequency Band	L/H band: A/B/C/D/E/F,
Channel	480 channels (40 programmable per band)
Frequency Control	Phase-Locked-Loop Synthesizer
Frequency Tolerance	± 5.0 ppm
Temperature Range	-20°C to 50°C

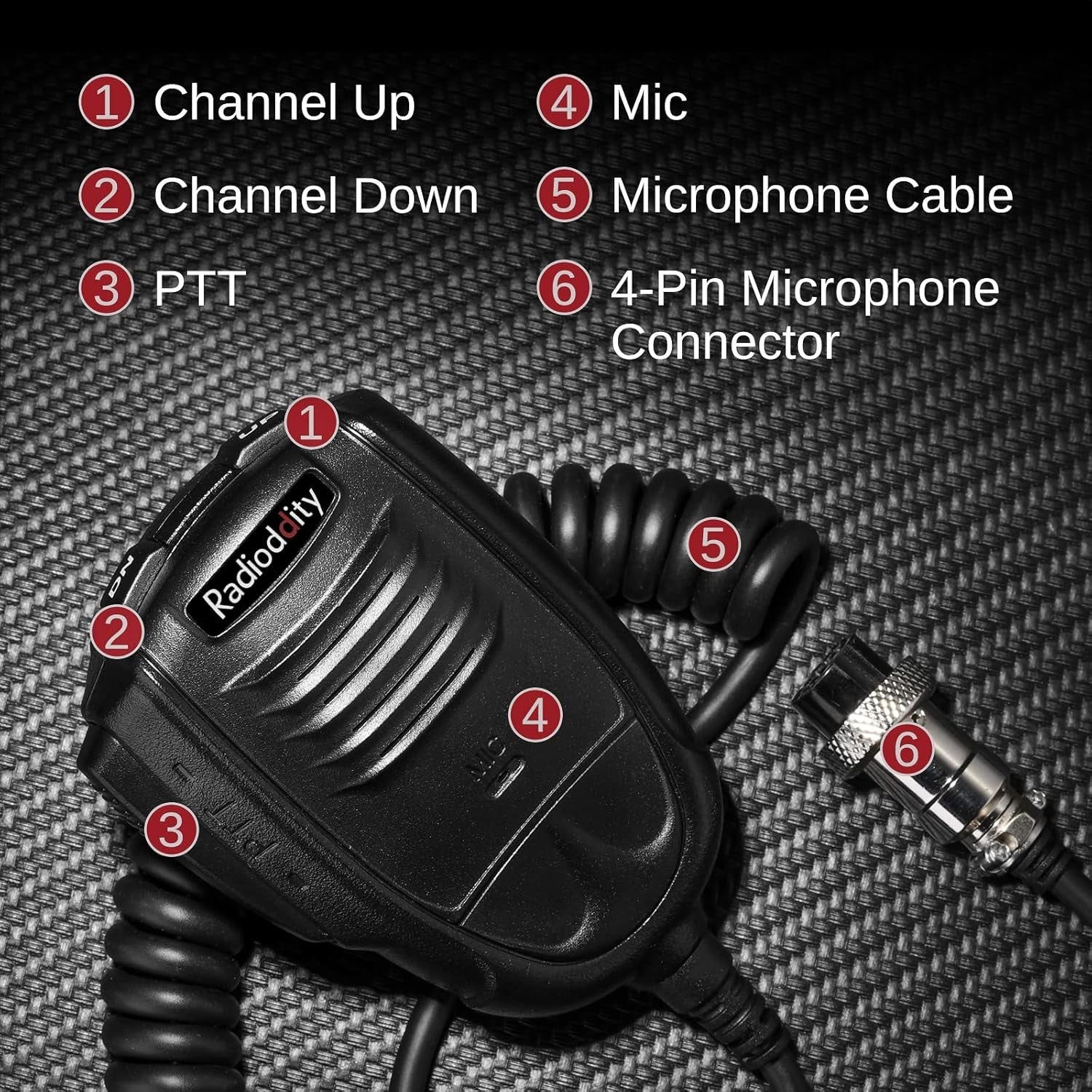

Microphone	with push-to-talk /UP/DN and coiled cord
Input Voltage	13.8V

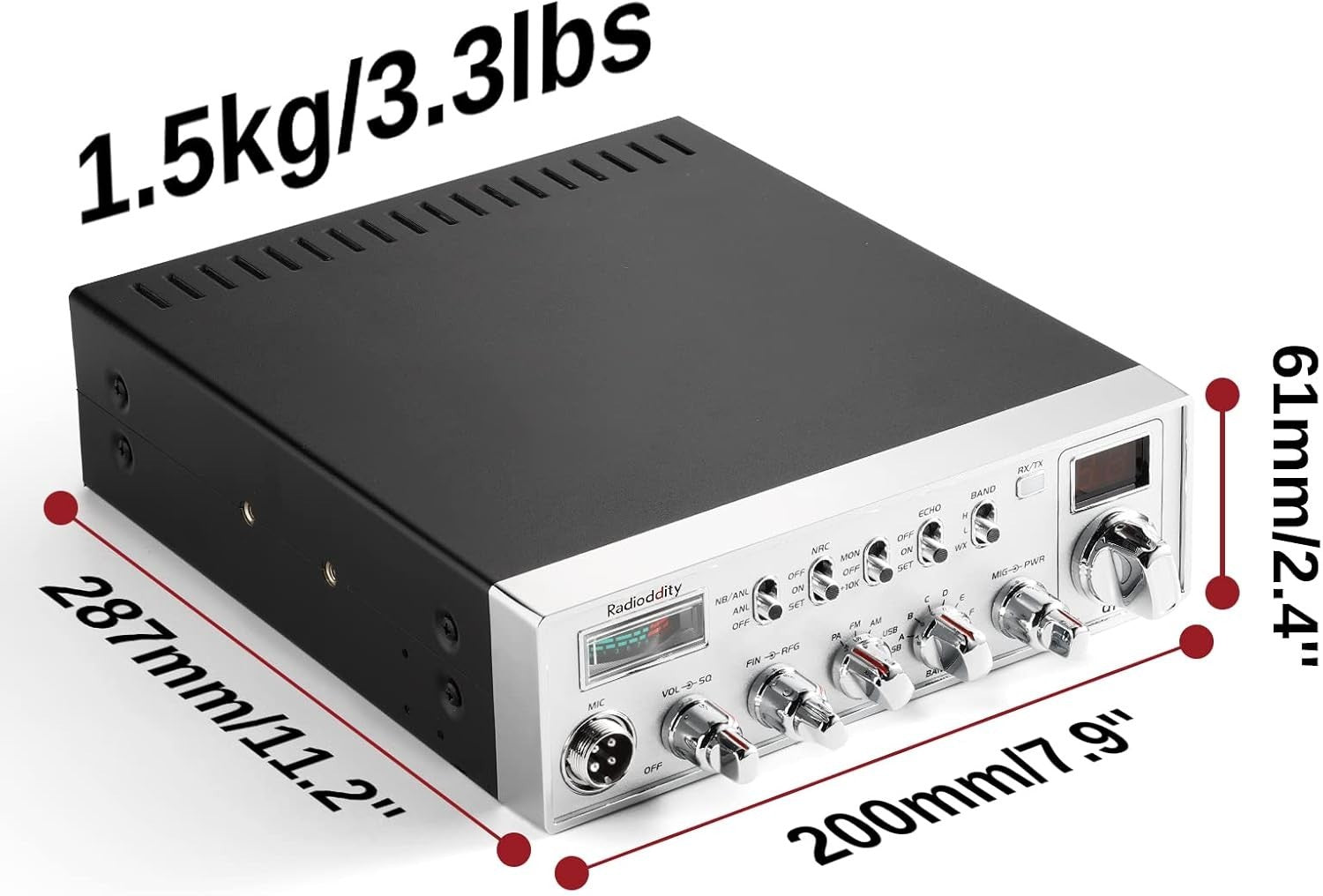

Dimensions	11.2 x 7.9 x 2.4''
Weight	3.3lbs

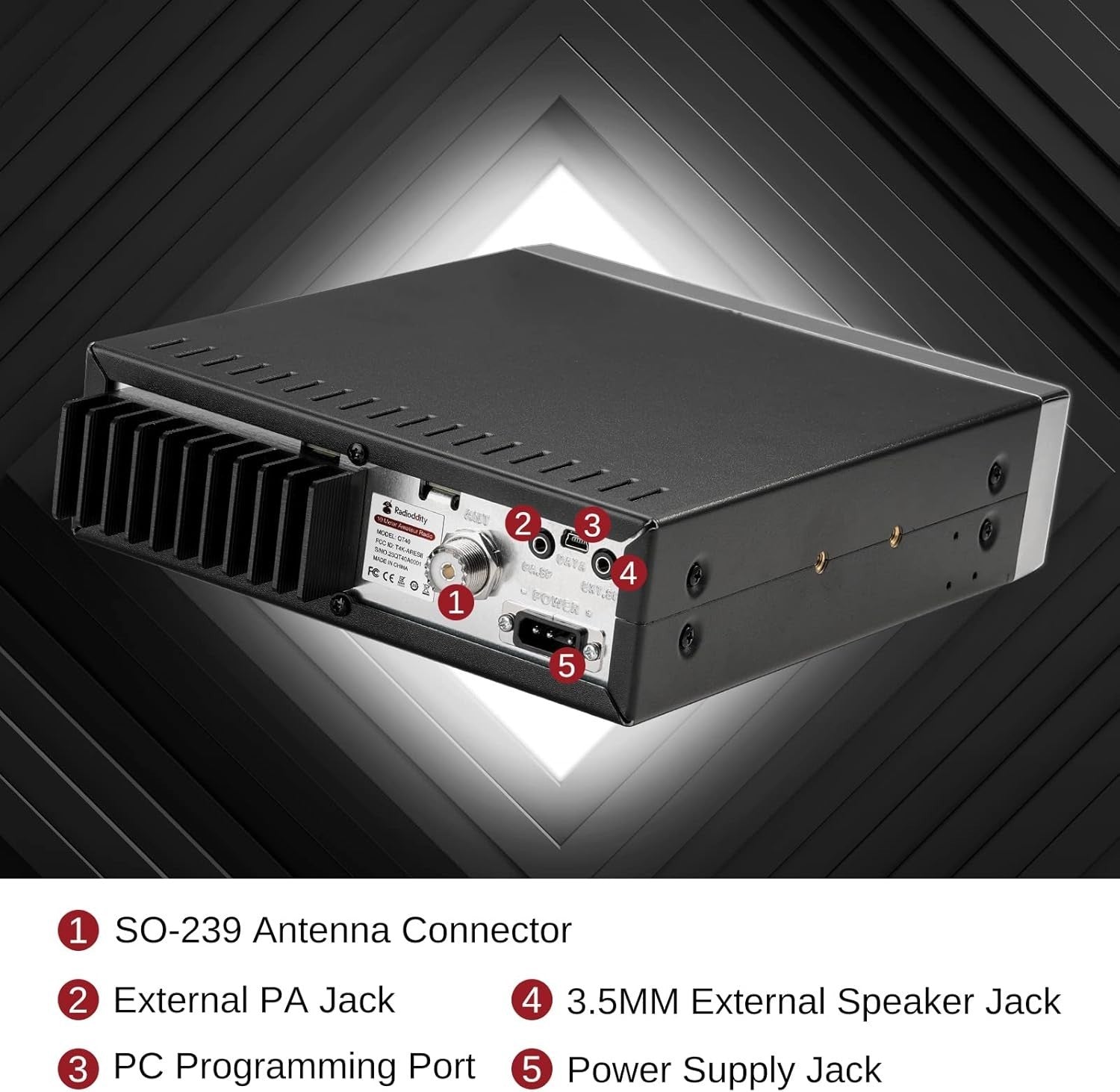

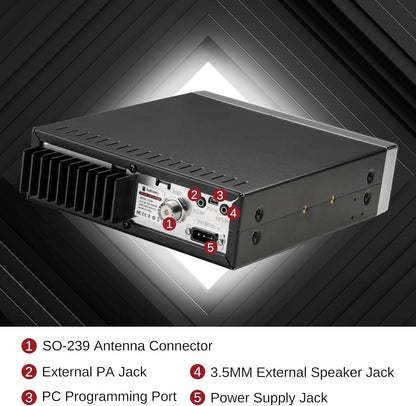

Antenna Connector	UHF, SO-239
VOX Level	0-9
Roger Beep Level	Off, 01-05
LED Brightness Level	1-3

Transmitter

Power Output	AM:1-12W (adjustable), FM:1-40W (adjustable), USB/LSB:1-35W (adjustable)
Drain	8A (with modulation)
Modulation	FM/AM/SSB
Inter-modulation Distortion	SSB: 3rd order, more than -25dB; 5th order, more than -35dB
SSB Carrier Suppression	55dB
Unwanted Sideband	50dB
Frequency Response	AM/FM: 450 to 2500Hz
Output Impedance	50ohms, unbalanced

Reception

Sensitivity	AM:1.0μV for 10 dB(S+N)/N at greater than 1/2watt of audio output. FM: 1.0 μV for 20 dB (S+N)/N at greater than ½ watt of audio output. SSB: 0.25μV for 10dB(S+N)/N at greater than ½ watt of audio output.
Selectivity	AM/FM:6dB @3KHz,50dB @9KHz SSB: 6 dB @2.1KHz,60dB @3.3KHz
Adjacent-Channel Selectivity	60dB AM/FM &70 dB SSB
Image Rejection	More than 65dB
IF Frequency	AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF SSB: 10.695 MHz
RF Gain Control	45dB adjustable for optimum signal reception
Automatic Gain Control(AGC)	Less than 10dB change in audio output for inputs from 10 to 100,000μV
Squelch	Adjustable; threshold less than 0.5 μV. Automatic Squelch Control(only AM/FM)0.5 μV
ANL (Active Noise Limiter)	Switchable
Noise Blanker	RF type, effective on AM/FM and SSB
Audio Output	Power 3 watts into 8 ohms
Frequency Response	AM/FM: 300 to 2800 Hz
Built-in Speaker	8 ohms, round
External Speaker(Not Supplied)	8 ohms, disables internal speaker when connected
