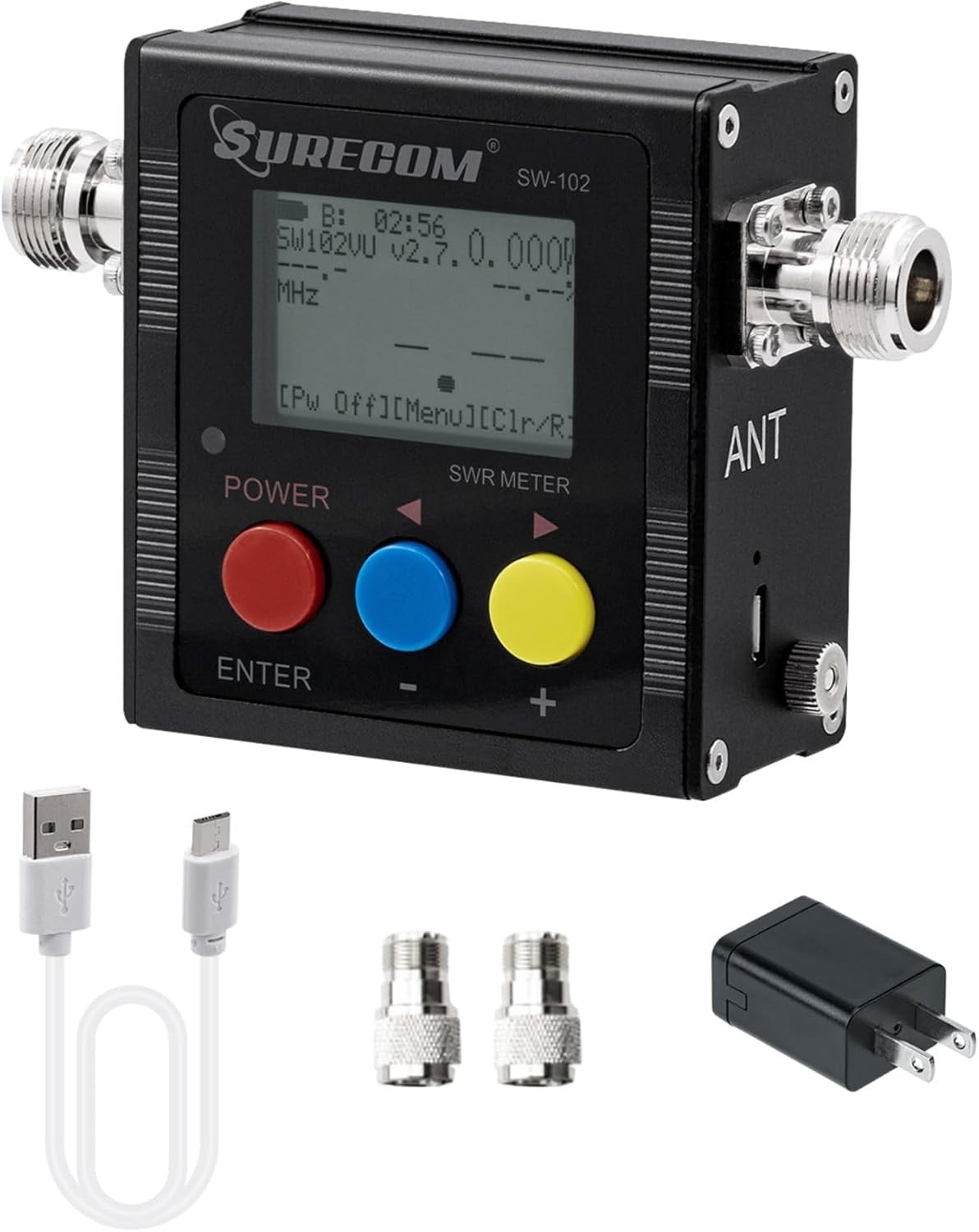

Surecom SW-102 Digital VHF/UHF 125-525Mhz Antenna Power & SWR Meter Adapter NEW

Name: Surecom SW-102 Digital VHF/UHF 125-525Mhz Antenna Power & SWR Meter Adapter NEW
Brand: Surecom
Price: 50.00 USD
Availability: OutOfStock

$50.00 USD

~~$0.00 USD~~ $50.00 USD

Sale Sold out

Surecom SW-102 Digital VHF/UHF 125-525Mhz Antenna Power & SWR Meter

Antenna	Radio

Color	Black
Number of Channels	1
Impedance	50 Ohm
Maximum Range	525 Feet
Product Dimensions	1.81"L x 4.8"W x 7.17"H
UPC	049008695771
Manufacturer	Surecom

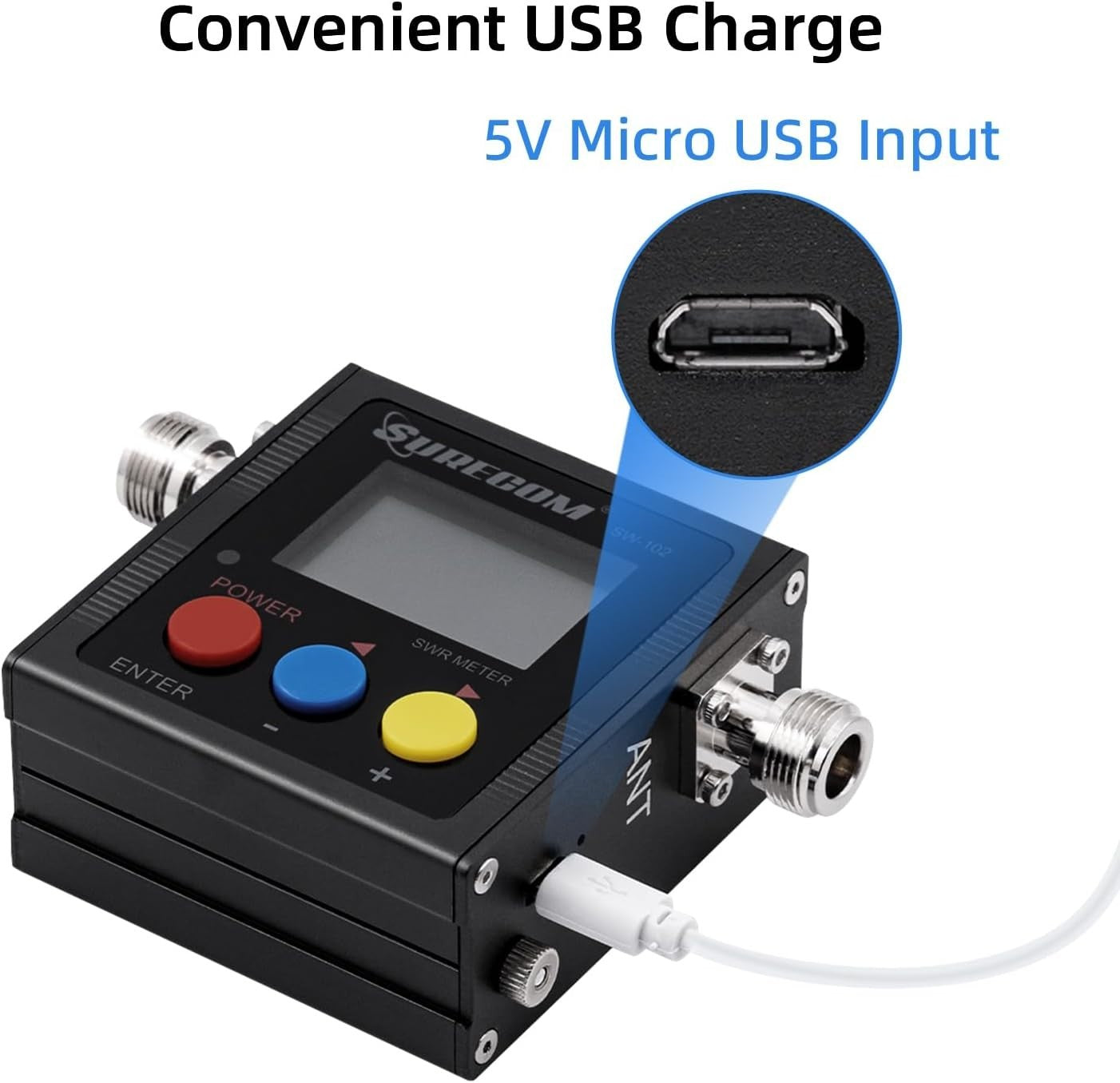

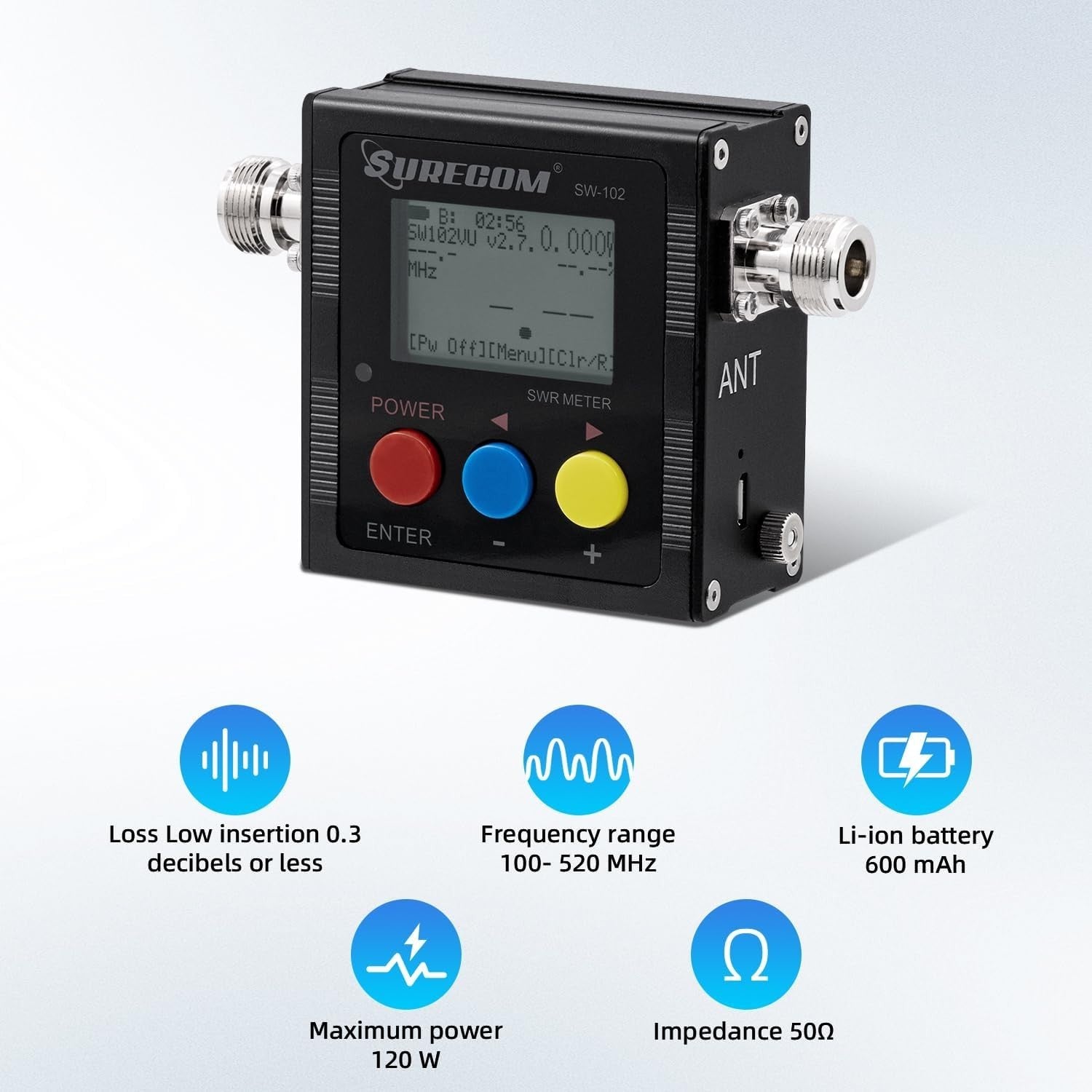

Number Product Description Notes: VSWR Direct digital display of forward-facing and reflected power, without calibration. Functions Frequency range: 100 - 520MHz Measurable power range: 0 - 120W Input Frequency counter Maximum power: 120W Accuracy: mean + / - 5% Impedance: 50Ω Battery : 3.7V Li-ion Rechargeable Battery Interface: N-J Interface Size: 666837 (mm) Weight: 220g Battery Build-in: 600 mAh Li-ion Battery Auto Power Off: 1-9 mins Charger in: 5V (micro usb) Backlight: AUTO OFF 1-9 mins Interface (in and out ): N(SL16) Descriptions: MAX. Power in: 120 W V.S.W.R: 1.00~19.9 Frequency Ranger: COVER 100MHz~520MHz Insertion Loss: <0.15dB(VHF) , <0.25dB(UHF) Temperature: 0℃~60℃ Input Frequency counter: Yes Battery Voltage Display: Yesof Items	1 About this item VSWR. Forward and reflected power direct digital readout, without any calibration. NOTE: DOES NOT compatible with Digital Radio(For example, DMR Digital Radio). The SW-102 Digital SWR Meter is engineered for optimal performance within the popular VHF (144-148MHz bands) and UHF (430-450MHz bands) amateur radio bands. This is where it delivers its most accurate readings for Standing Wave Ratio (SWR) and RF Power output, essential for setting up and maintaining efficient antenna systems.Maximum measurable power range up to 120W. Low insertion loss (0.3 decibels or less) structure allows it to be permanently connected. N-Type Base Connectors: Features robust N-Type female ports for high-frequency accuracy and durability. Comes with 2 N-Type to SO239 adapters - ready to connect to most ham radios and antennas! If your device uses connectors OTHER than N-Type or SO239 (e.g. BNC, SMA, PL-259, TNC), additional third-party adapters are required and not included. Frequency range: 125 - 525MHz. NOTE: ground plate is NOT included. Note：The display comes with a protective film attached to the screen to prevent scratches during transportation. Please carefully inspect and remove the protective film before your first use to achieve the best display performance. NOT for CB Radio: This SWR meter is NOT compatible with CB radios operating on 27MHz CB channel frequencies. It is designed for higher VHF/UHF bands. Ensure compatibility with your radio's frequency range before purchase.
