Tablet Oscilloscope TO2002 to Series Lab Oscilloscopes 200Mhz 2 Channel Touch

Name: Tablet Oscilloscope TO2002 to Series Lab Oscilloscopes 200Mhz 2 Channel Touch
Brand: MICSIG
Price: 658.00 USD
Availability: InStock

$658.00 USD

~~$0.00 USD~~ $658.00 USD

Sale Sold out

MICSIG Tablet Oscilloscope TO2002 to Series Lab Oscilloscopes 200Mhz 2Channel Oscilloscopes Touch Screen Oscilloscope Automotive(TO2002 200Mhz)

◆Micsig Tablet Oscilloscope T01004/2004/3004/2002 with Bandwidth 300MHz Sampling Rate 2GSa/s
◆Memory Depth 220Mpts Analog Channels 2/4 Display：10.1 inches, 1280*800 Oscilloscopes
◆Full Touch Operation, Micsig full touch Oscilloscope Portable & Benchtop digital Oscilloscopes

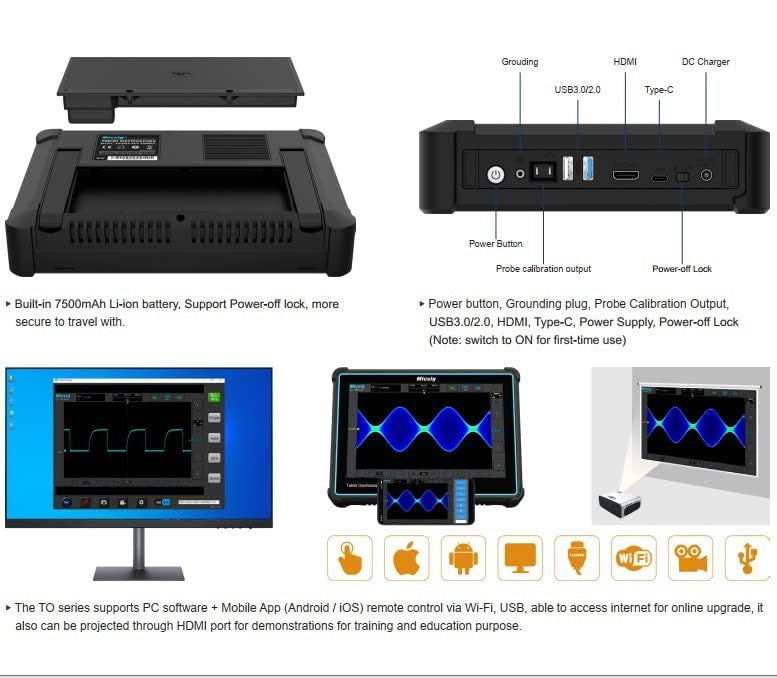

◆Equipped with Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, and Trigger Out interfaces
◆Support Edge,Pulse, Runt,Logic, N-edge,Video, Timeout, Slope, 31 Auto Measurements, remote control

Product Description

Micsig Tablet Oscilloscope TO Series 8 Bit Tablet Oscilloscope

Bandwidth：100MHz-300MHz

Sampling Rate：2GSa/s

Memory Depth：220Mpts

Analog Channels：2/4

Display：10.1 inches, 1280*800

The TO series of tablet oscilloscopes is a professional-grade portable oscilloscope that features a 10.1-inch large high-definition screen, built-in lithium battery with a duration of over five hours, 2/4 channel options, a maximum bandwidth of 300MHz, the highest sampling rate of 2GSa/s, and a maximum memory depth of 220Mpts. It is equipped with the SigtestUI multitasking system, a user-friendly interface specifically designed for test instruments, allowing you to operate the oscilloscope as easily as using a smartphone. This makes it convenient for you to solve problems anytime, whether in the lab or on-site.

Recommended Options: Current Probes/Voltage Probes

High Frequency AC/DC	Current Probe: Bandwidth: 50 / 100MHz, Range: 6A/30A, Accuracy: ±1%, BNC interface
Rogowski Coil AC CurrentProbe	Model RCP500 : Bandwidth: 15-300KHz, Range: 200mApk-500Apk, Accuracy: 1%, BNC interface / Micsig UPI interface
AC Current Probe ACP1000	Model ACP1000: Bandwidth: 10Hz-100KHz, Range: 0.1Apk-1000Apk, BNC interface
Low Frequency Current Probe	Model AC/DC CP2100B: Bandwidth: DC~2.5MHz, Range: 10A/100A, BNC interface
Low Frequency Current Probe	Model AC/DC CP2100A : Bandwidth: DC~800KHz, Range: 10A/100A, BNC interface
High Voltage DifferentialProbe	Model DP750-100: Bandwidth: 100MHz, Max. input differential voltage(DC+AC PK): 75V(50X), 750V(500X), Accuracy: ±2%, BNC interface / Micsig UPI interface
High Voltage DifferentialProbe	Model DP series: Bandwidth: 100MHz, 700V - 5600Vpk, Accuracy: ±2%, BNC interface
High Voltage DifferentialProbe	Model MDP series: Bandwidth: 100MHz, 700V - 3000Vpk Accuracy: ±2%, BNC interface
SigOFITTM optical-fiber	optical-fiber isolated probe: Bandwidth: 100MHz - 1GHz, common mode voltage: 60kVpk, CMRR: DC -160dB.

Product Overview

The TO series Tablet Oscilloscope features 2&4 analog channels, up to 300MHz bandwidth, 2GSa/s sampling rate and max. 220Mpts memory depth, running with Micsig latest SigtestUITM multitasking system, make sure long-time stable and smooth performance. 10.1-inch integrated full touch screen with 1280 x 800 high resolution, combined with Micsig's over 10 years of experience in touch control algorithms, the TO series brings touch experience to another level.

The TO series Tablet Oscilloscope comes in a compact form factor, making it a go-to oscilloscope for electronic debug and test, integrates comprehensive measurement and mathematical functions, supports serial bus triggering

and decoding, also equipped with hardware digital filtering modules and other functions. Powered by built-in battery, it helps engineers work where they work.
