Features

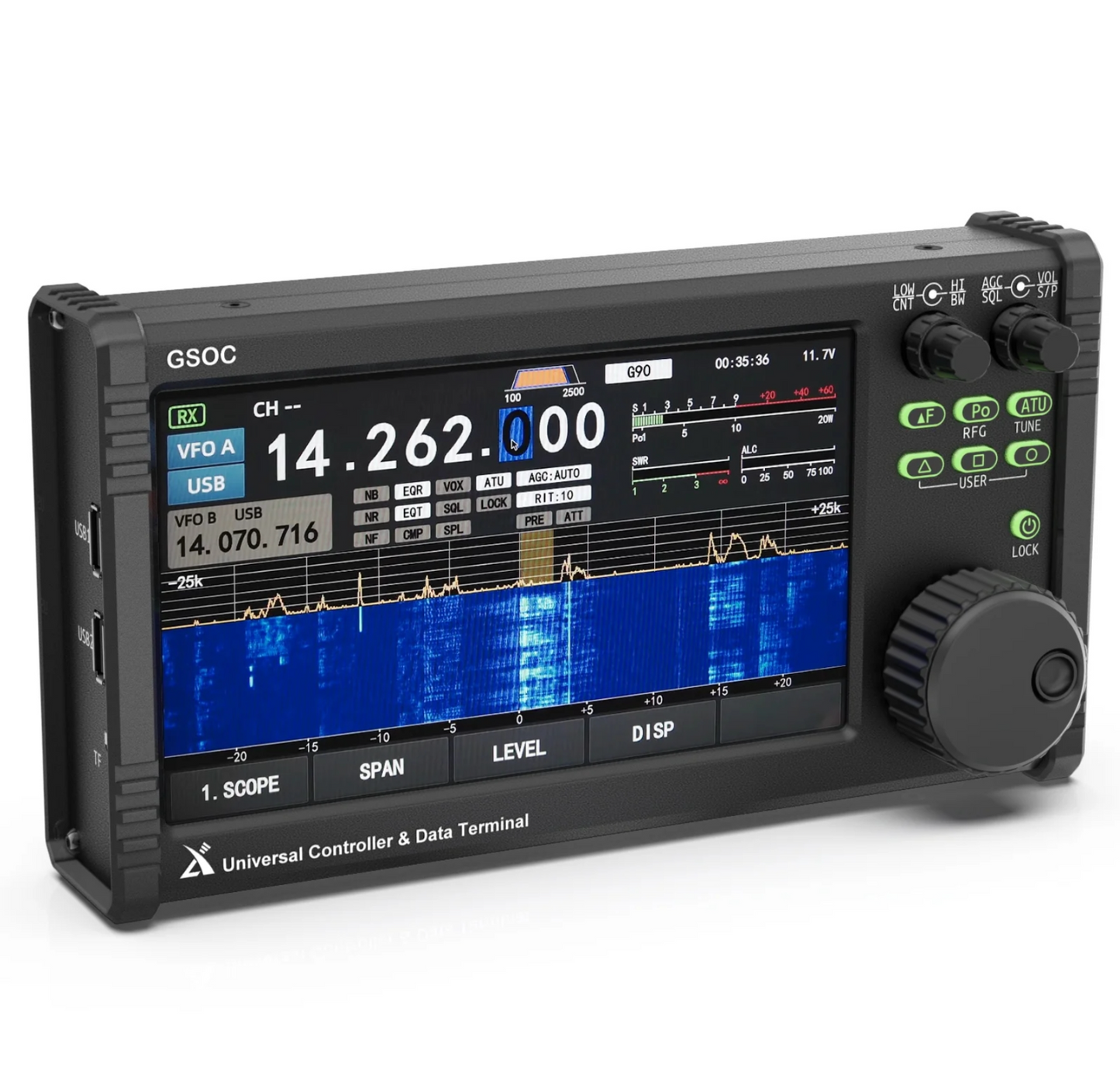

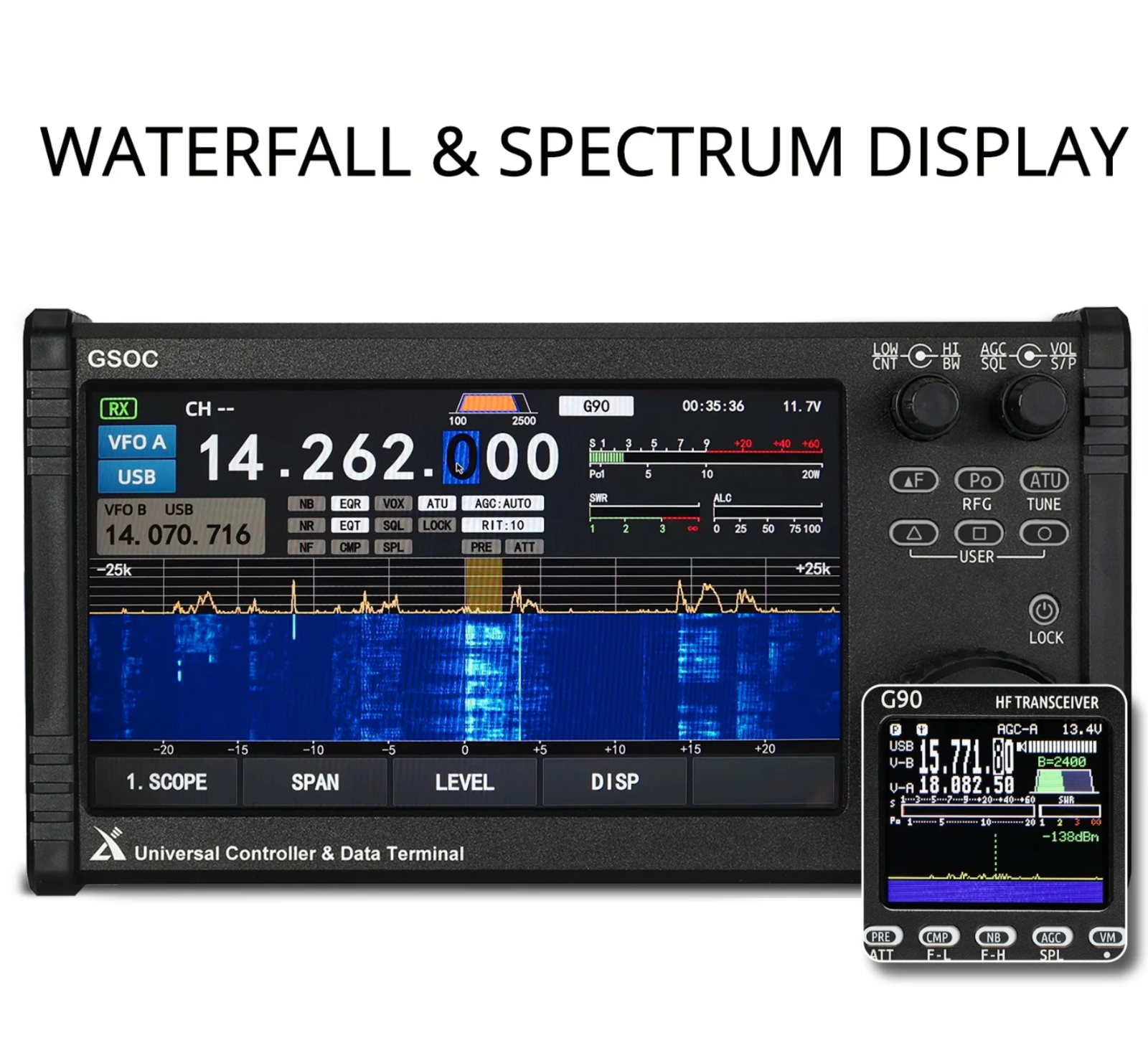

• 200k bandwidth spectrum display and waterfall display

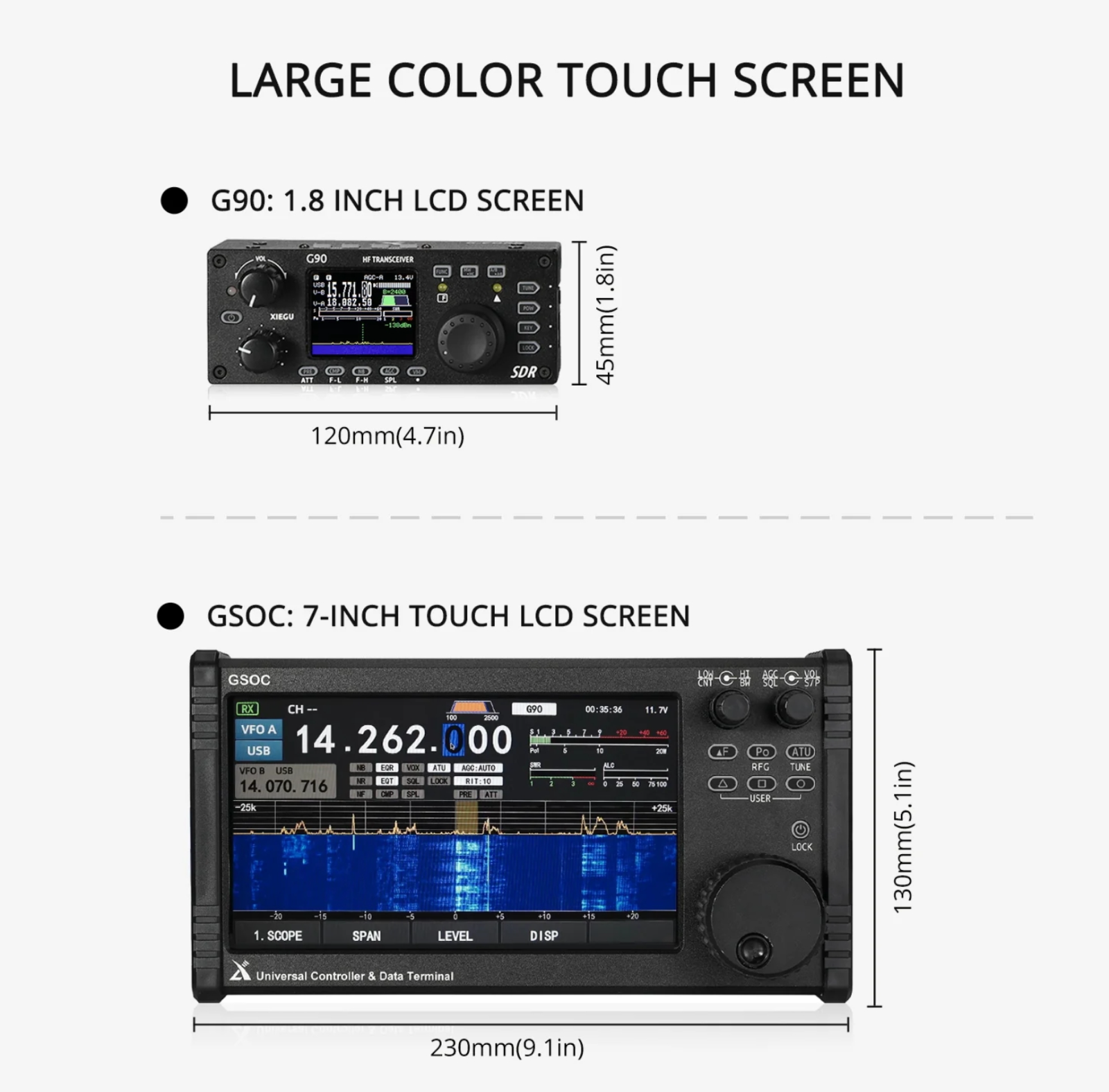

• 1024*600 7-inch color touch LCD screen

• Digital mode decoding capabilities

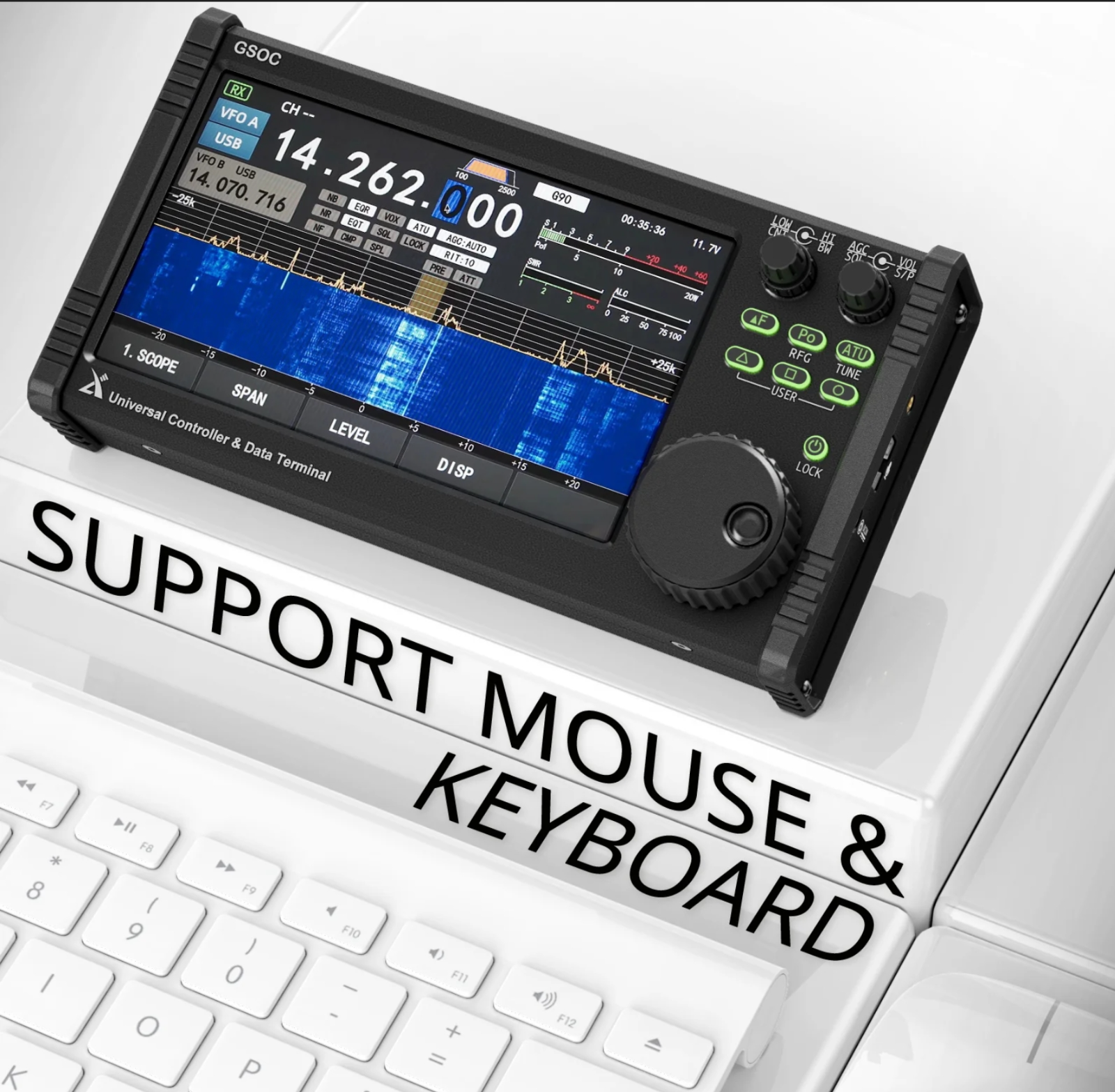

• Supports mouse & keyboard operating

• Dual-core eMMc application processor

• Built-in PSK, RTTY, CW digital mode

• RX & TX Multi-band Equalizers

• Easy two-wire connection to G90

• Fast frequency change & band selection

• Three user-programmable buttons

• Power design for future expansion

Specifications

Applicable model: G90
Operating temperature scope: 0°C ~ +50°C
Frequency stability: ±1.5ppm in the 10~60min after startup
@25°C: 1ppm/hour
Supply voltage: 10.5~16.5VDC, negative electrode grounding
Current consumption: 600mA @ Max
Display screen resolution: 1024*600
Touch screen type: Capacitive
Spectral sensitivity: -120dBm ± 3dB
Audio output: 0.5W (8Ω, ≤10%THD)
Earphone output impedance: 16~32Ω
Size: 230*130*45mm (excluding projection)
Weight: about 1.2kg / 2.65lb (only host)
