Xiegu X6100 HF Radio Transceiver, 10W Full Mode SDR Radio Supports BT with 4" LCD Screen
About this item
- SDR Radio: Software-defined radio (SDR) system uses software for the modulation and demodulation of radio signals. Processing via a computer or other digital devices with software, the X6100 can provide you more info in real-time, complete complex operations and process data faster.
- 5W Upgrade to 10W High Power: From 5W to max 10W, the Xiegu X6100 is a more powerful RIG than the X5105. In general, a higher wattage allows for greater range. Working with the XPA125B power amplifier, the X6100 can meet your long-rang talking requirement.

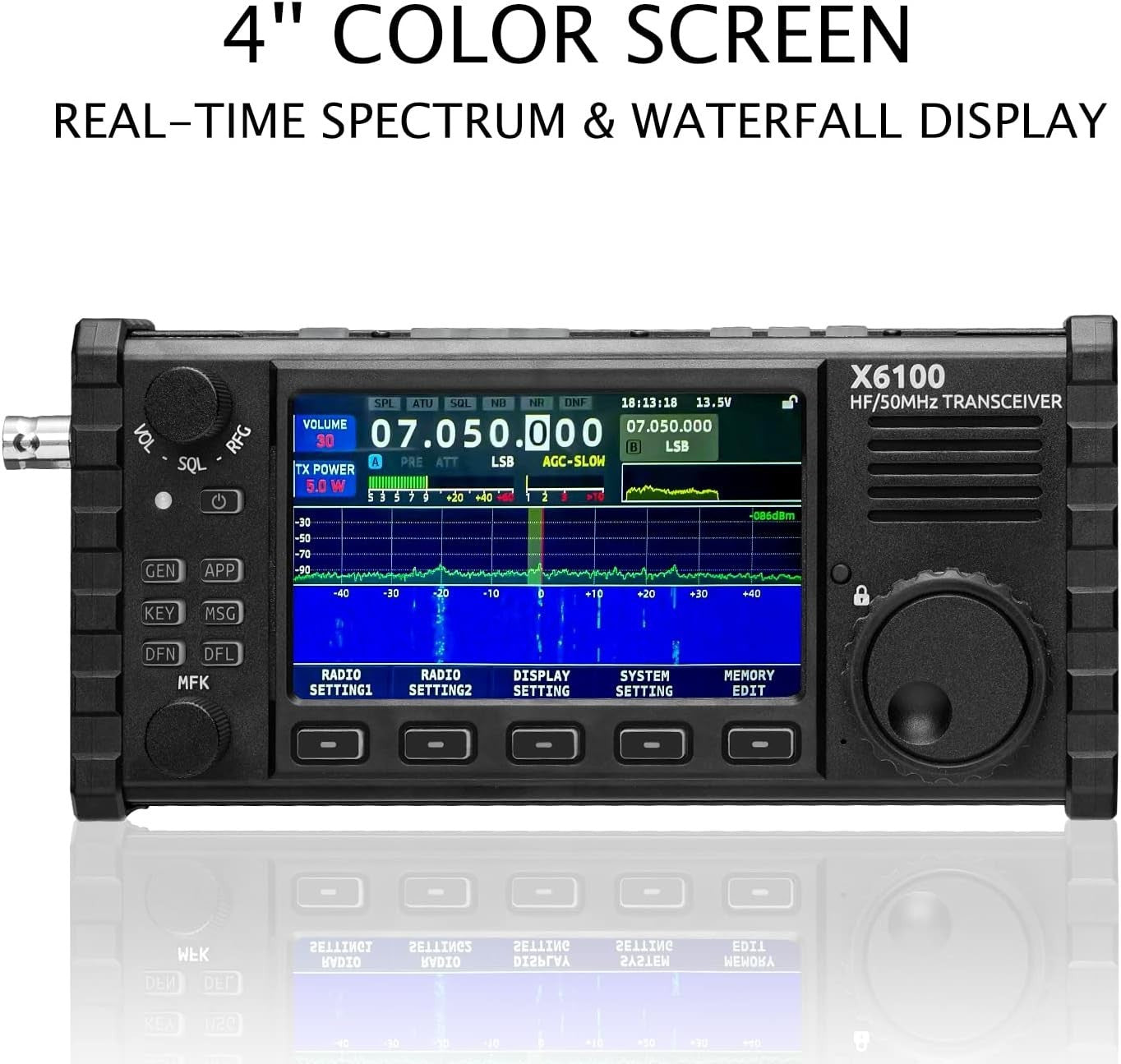

- 4in Color Screen: The Xiegu X6100 HF transceiver comes with a 4-inch large color screen with 800*400 high resolution, helping you see all the important information at a glance.

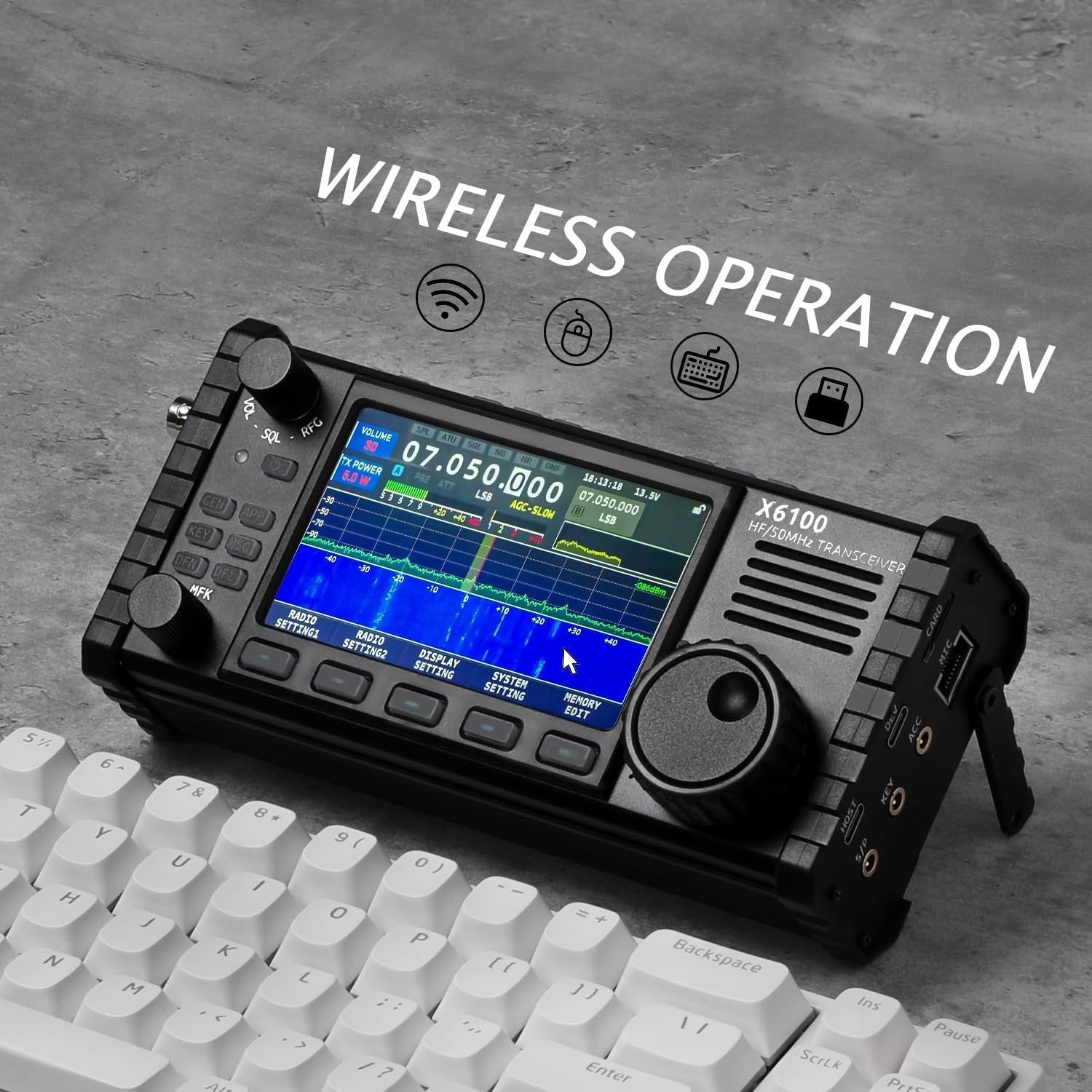

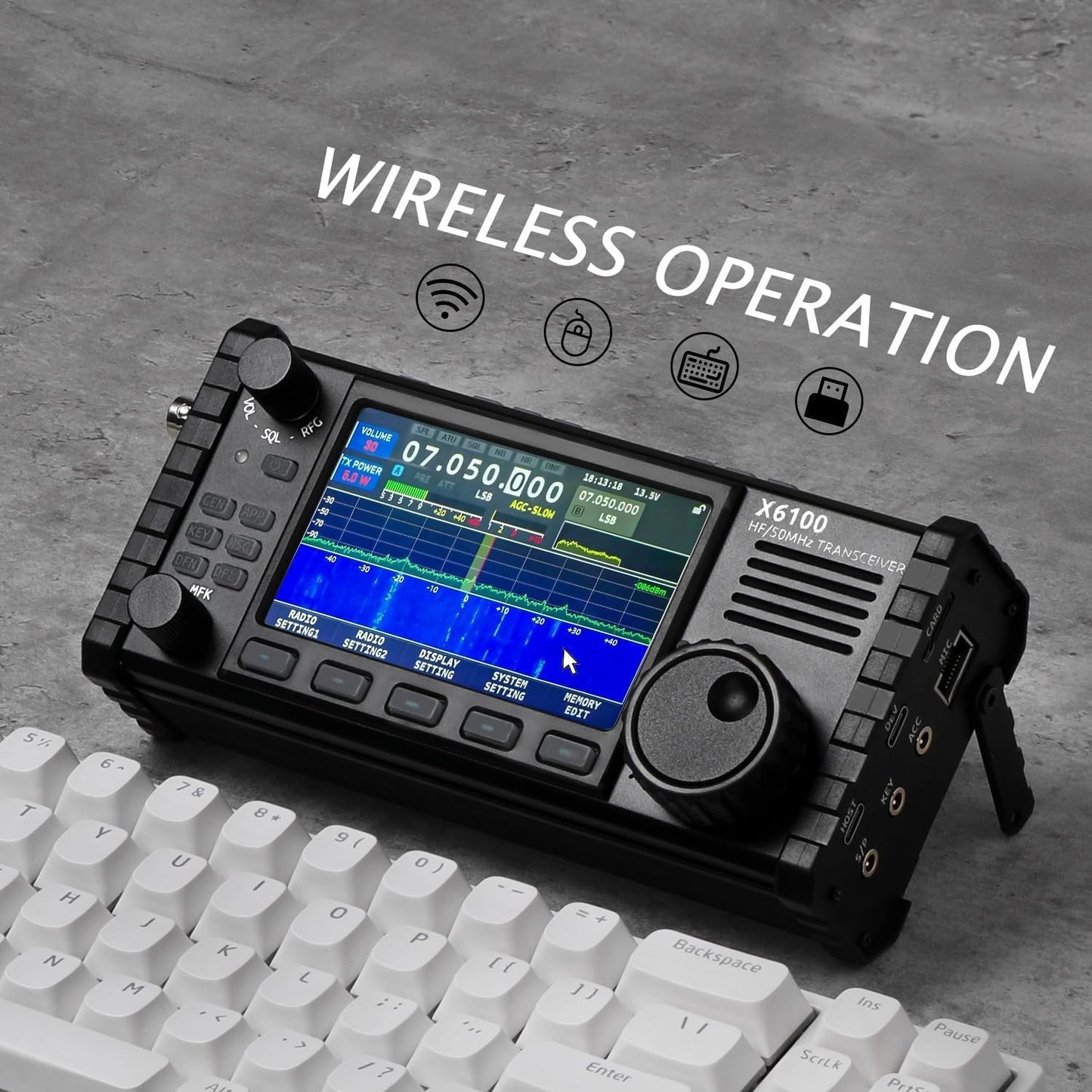

- Wireless Operation: In addition to traditional connecting ports to connect with extended devices , the Xiegu X6100 also supports modern connection methods like mouse and keyboard control via BT. Built-in High-stability TCXO Internal Clock Source
Product Description
LATEST FIRMWARE: 2024.09.04
2024.09.06 Upgrade Log
1) Adjust the gain allocation in the baseband section, improve the received signal- to noise ratio, reduce broadcast crosstalk, and minimize birdies.
2) Adjust the spectrum/waterfall automatic level tracking mode, improve the signal contrast when dealing with strong signal, easier to distinguish between signal and noise.
3) Add audio spectrum/oscilloscope switch, turn off the spectrum/waterfall diagram can be exclusive display.
4) Fix a bug where MFK tags could not be saved.
5) Optimize the NR algorithm.
6) Adjust the following CI-V data format：
S-Meter: 0000=S0,0120=S9,0242=S9+60dB
SWR-Meter: 0000=1.0,0048=1.5,0080=2.0,0120=3.0
Volt-Meter: 0000=0V,0075=5V,0241=16V
7) Adjuste the operation logic of the WLAN settings interface
8) Adjust the operation logic of BT setting interface

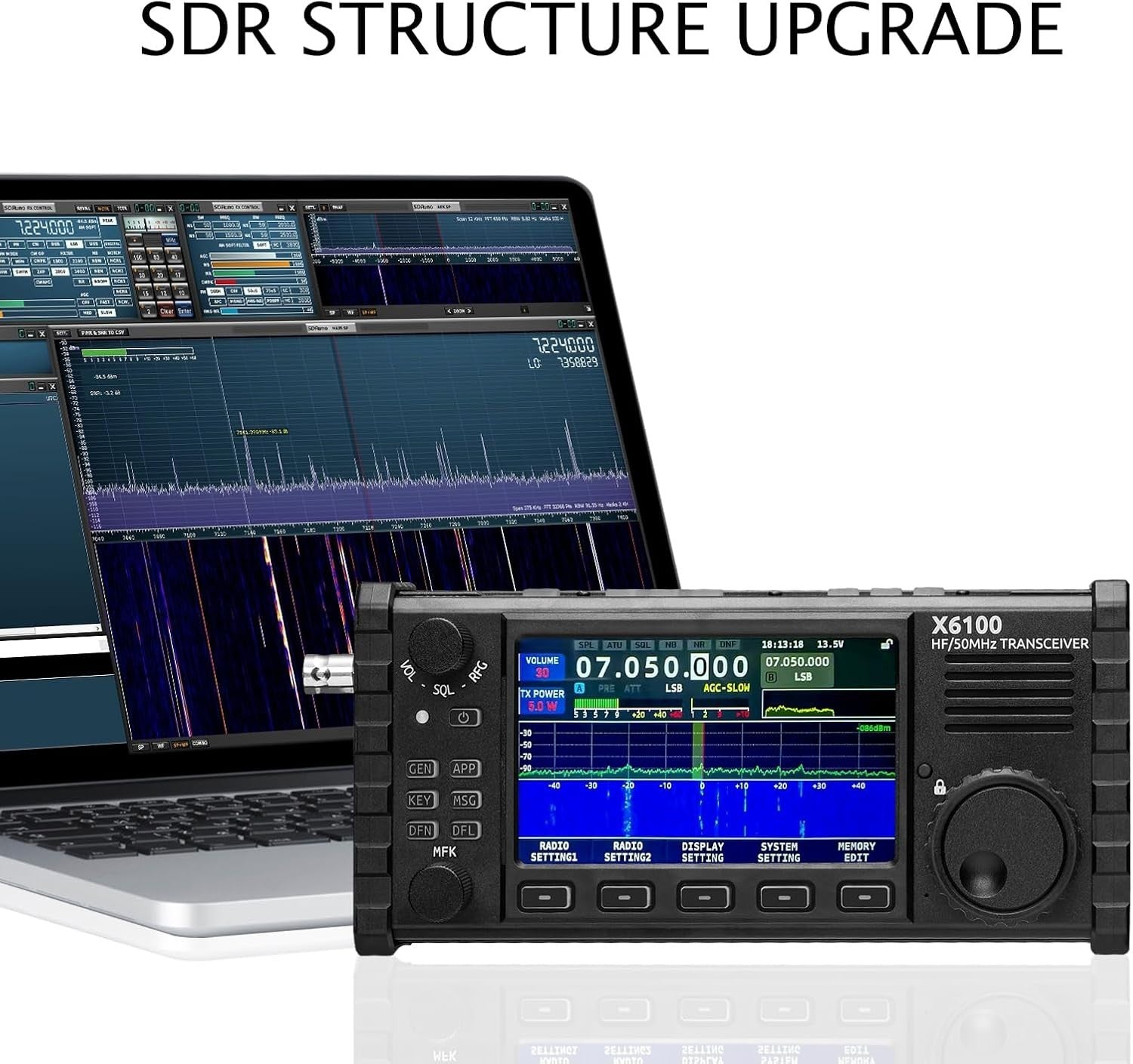

Analog - SDR Radio
Software-defined radio (SDR) system uses software for the modulation and demodulation of radio signals. Processing via a computer or other digital devices with software, the X6100 can provide you more info in real-time, complete complex operations and process data faster.

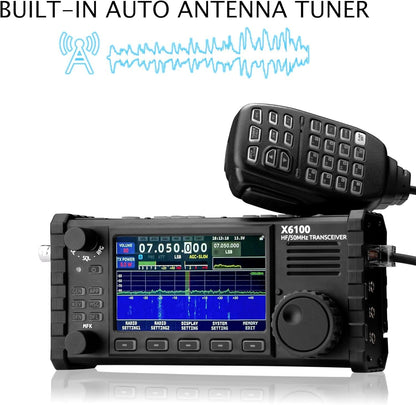

Antenna Tuner
VSWR: 1:5.0
Antenna tuner initial tuning time: ≤15s
Antenna tuner tuning read time: ≤0.2s
What's in the box?
1 x Xiegu X6100 Transceiver
1 x USB Type-C Data Cable
1 x Multi-function Speaker Mic
1 x Power Adapter
1 x Charging Cable
1 x User Manual
Basic specification
Transmitter
- T XPower: 10W (SSB/CW/FM) @13.8VDC | 5W @battery; 2.5W(AM) @13.8VDC | 1.5W @battery
- Stray Suppression: 1.8~29.6MHz: ≥50dB | 50~54MHz: ≥60dB
- Sideband Suppression: ≥50dB
- Microphone Impedance: 200~10kΩ (600Ω in general)
R eceiver
- Circuit Type: ZIF
- Sideband Suppression: ≥50dB
- MDS: -138dB
Wireless network
Wireless LAN standard: IEEE802.11b/g/n
Authentication and encryption: WEP (64/128bit)
WPA-PSK(TKIP)
WPA2-PSK(AES)
Frequency band: 2.4G
BT version: 4.0

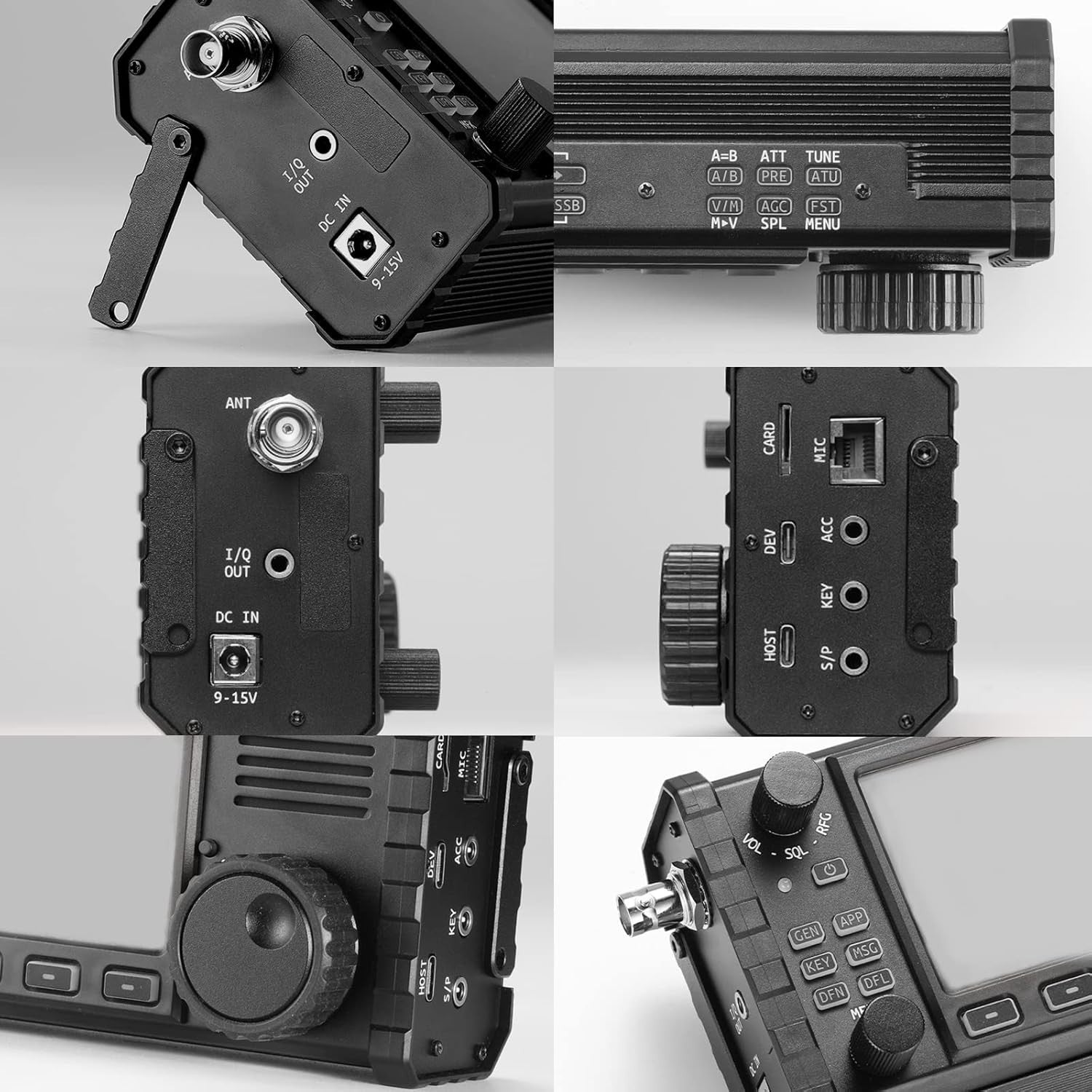

Note that the center pin is positive.
Note that as for the included power cable, the white one is positive and black one is negative.
